Diarex M5

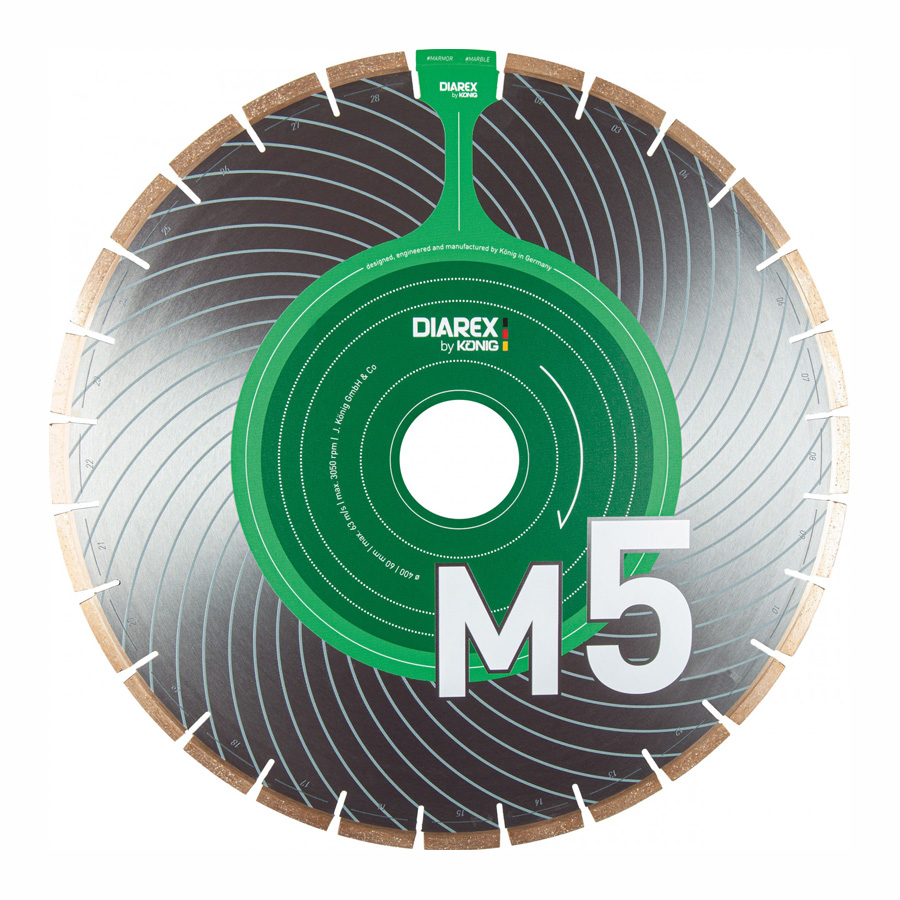

The Diarex M5 Blade is a premium quality blade for wet-cutting of Marble, soft stones and delicate material. The Diarex M5 Blade produces clean and sharp edges and almost no chipping.

Enquire Find A Stockist

Categories: Diamond Blades (Large), Diarex, Tools

Additional information
Operating Parameters

Product type	Diamond Blades (Large)
Material	Marble
Diameter	300mm, 350mm, 400mm, 450mm, 500mm
Depth of cut	20mm, 30mm, 40mm
Blade bore	60mm
Brand	Diarex

Operating Parameters

OPERATING PARAMETERS
DEPTH OF CUT	DIAMETER	RPM	FEED SPEED	FEED SPEED MITRE
20mm	400mm	2100-2400	2.4 – 4.8 m/min	1.2 – 2.4 m/min
20mm	450mm	1900-2100	2.4 – 4.8 m/min	1.2 – 2.4 m/min
20mm	500mm	1750-2100	2.4 – 4.8 m/min	1.2 – 2.4 m/min
30mm	400mm	2600-2800	2.4 m/min	1.2 m/min
30mm	450mm	2600-2800	2.4 m/min	1.2 m/min
30mm	500mm	1450-1600	2.4 m/min	1.2 m/min
40mm	400mm	1750-1920	1.6 – 3.2 m/min	0.8 – 1.6 m/min
40mm	450mm	1300-1440	1.6 – 3.2 m/min	0.8 – 1.6 m/min
40mm	500mm	1160-1300	1.6 – 3.2 m/min	0.8 – 1.6 m/min
